Metal flange
- Complete specifications
- Comments 0
- Related products4
- Metal flange38,36 €/ pcs38,36 € VAT excluded
Complete specifications

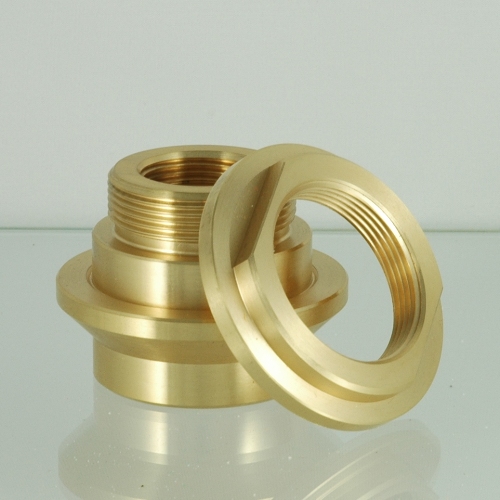

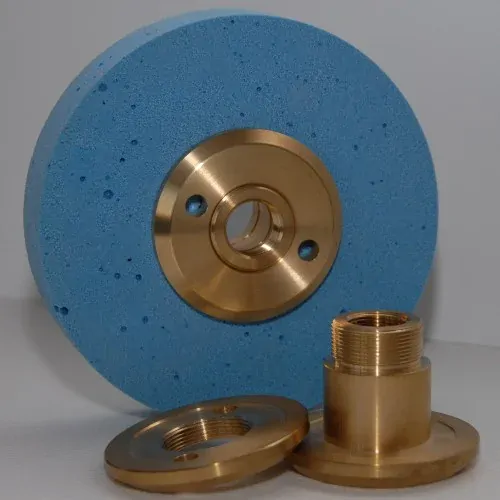

For quick change of tools we recommend using the metal flange. You don't have to re-shape the wheel everytime you change the wheel with this system.
| Diameter of flange (A) | Centre bore of the tool (B) | Thickness of the tool (C) | Price in € |
| 25 mm | 20 mm | 10 mm | 25.24 |
| 25 mm | 20 mm | 20 mm | 25.68 |
| 40 mm | 32 mm | 10 mm | 29.10 |
| 40 mm | 32 mm | 15 mm | 29.68 |
| 40 mm | 32 mm | 20 mm | 30.84 |
| 50 mm | 42 mm | 10 mm | 33.76 |
| 50 mm | 42 mm | 20 mm | 35.20 |
| 50 mm | 42 mm | 25 mm | 35.60 |
| 56 mm | 42 mm | 5mm, 8mm, 10 mm | 35.48 |
| 56 mm | 42 mm | 15mm, 20 mm | 37.24 |
| 56 mm | 42 mm | 25 mm | 37.84 |
| 63 mm | 42 mm | 10 mm | 40.16 |
| 63 mm | 42 mm | 20 mm | 42.48 |
| 63 mm | 42 mm | 35 mm | 50.04 |
| 80 mm | 42 mm | 35 mm | 58.20 |
