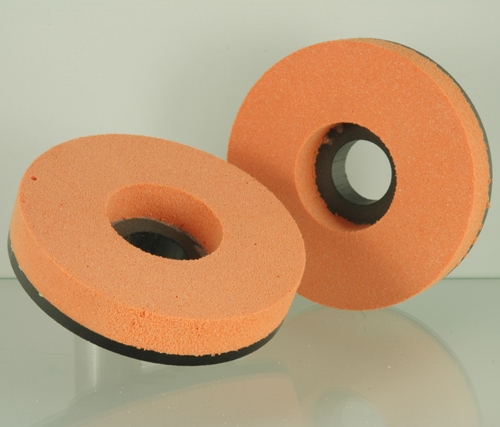

- LAPI Orange Wheel
LAPI Orange Wheel
- TOP product
- Complete specifications
- Comments 0
- Download
- Related products2
- LAPI Orange Wheel16,30 €/ pcs16,30 € VAT excluded
- The tools are made of polyurethane foam
- The tools are cooled with water (no added abrasive necessary)
- The tools minimize cracking layer in worked glass thereby polishing is easier
- The tools are suitable for lathes (vertical way) as well as for flat machines (horizontal way)
- The tools are easily profiled

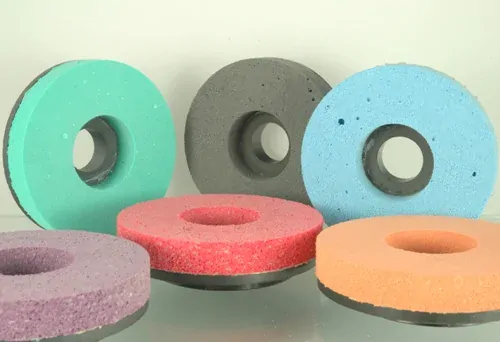

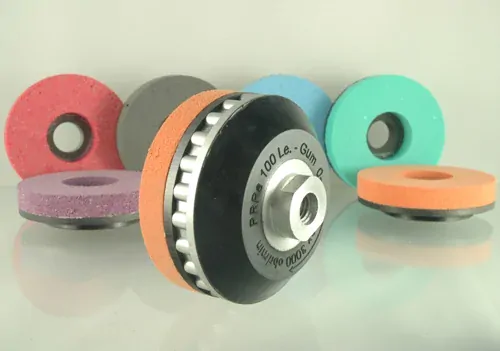

We produce 6 types of LAPI Tools. The difference is in the grit of incorporated abrasives. Lapi Pink has the greatest material removal effect and creates the roughest surface on glass, whereas Lapi Blue has the smallest material removal effect and creates the finest surface on glass.
PINK is suitable for removing seams after moulding, for rough working within radii of various dimensions, etc.
VIOLET has the same use as Pink, however, it creates a finer surface with a slightly lower removal effect on glass than the Pink wheel.
ORANGE is suitable for various kinds of manual repairs prior and following chemical polishing as well as for fining before mechanical polishing.
GREEN is suitable for fine cutting after rough LAPI. The tool creates surfaces which can be polished mechanically.
BLACK can directly polish concave surfaces, wedge cuts, etc. It is well suited for manual repairs of sodium-potassium crystal.
BLUE achieves final surface quality comparable to surfaces after processing with the finest pumice. In many cases this tool can be used for the final polishing.
Dimensions with prices:
| 75x10 mm | 100x10 mm | 100x15 mm | 125x10 mm | 125x15 mm |
Lapi Pink Lapi Violet | € 12.70 | € 15.80 | € 16.70 | € 19.20 | € 20.60 |
Lapi Orange Lapi Green Lapi Black Lapi Blue | € 11.90 | € 14.80 | € 15.60 | € 18.40 | € 19.20 |
Velcro with glued wheel | • |
|
|
| |
SF with glued wheel |
| • | • | • | • |
| gluing on M14 | • | • | • | • | • |
Centre bore:
Normally we manufacture the tools with centre bores of 20 mm (for Ø 75 mm) and 42 mm (for Ø 100, 125 & 150 mm). Upon prior arrangement, we can make various sizes of centre bore (please specify in the notes of the order). Centre bore does not influence the price.
Connection:

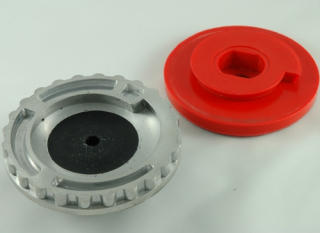

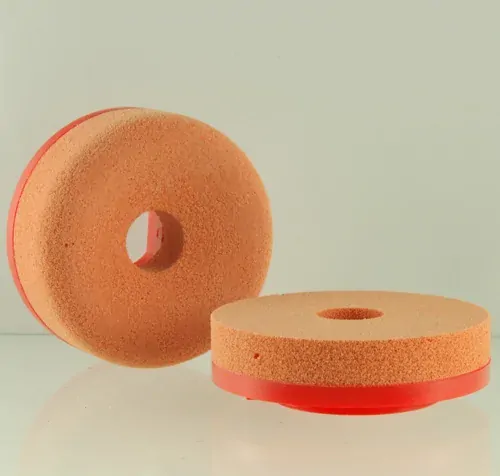

- glueing onto holder (SF) Ø 100 mm → + € 8.00 (SF holder included)
- glueing onto holder (SF) Ø 125 mm → + € 10.00 (SF holder included)

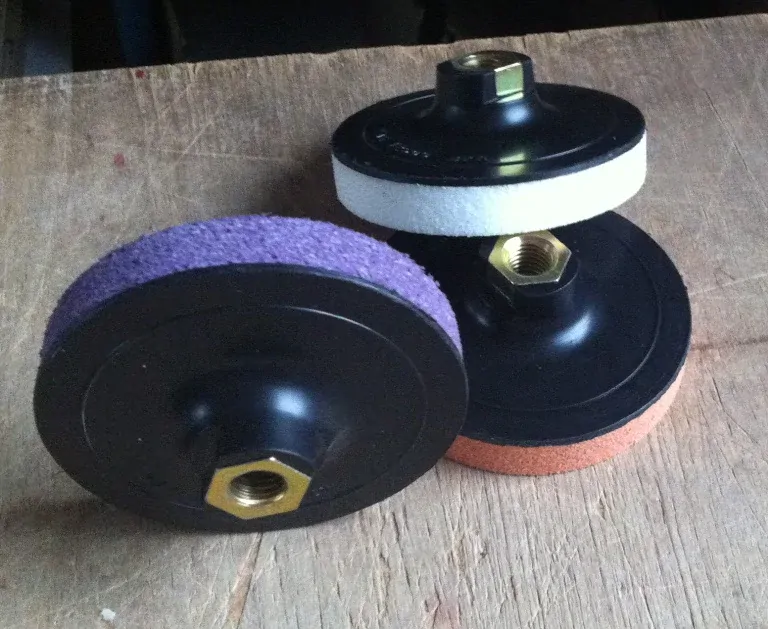

- glueing onto holder M14 → + € 4.70 (M14 holder included)
- glueing onto Velcro → € 1.40 (suitable for very small wheels up to 75x10mm)

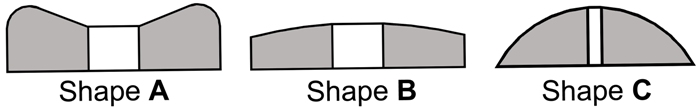

Profiling:
- Shape A - € 1.00
- Shape B - € 1.00
- Shape C - € 1.16
